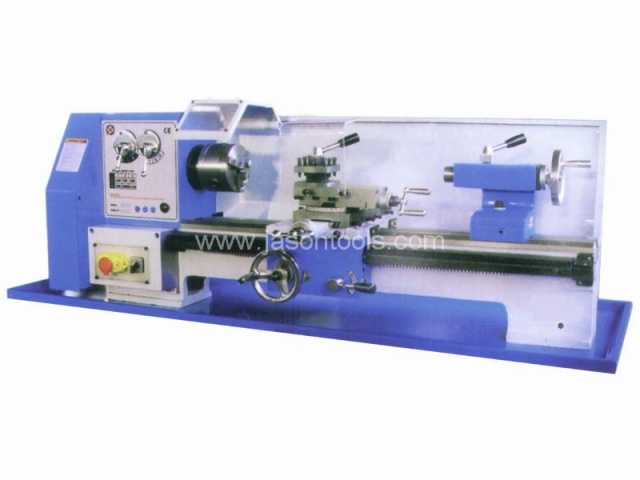

Lathe machine 521252

Item Code:521252 Features:Lathe machine BV20-1/BV20L-1
  • Description

-Distance between centers: 350/520mm

-Swing over bed: 200mm

-Swing over cross slide: 115mm

-Taper of spindle bore: MT3

-Spindle bore: 20mm

-Step of spindle speeds: 6

-Range of spindle speeds: 140-1710r.p.m

-Range of longitudinal feeds: 0.05-0.15mm/r

-Range of inch threads: 8-32 T.P.I

-Range of metric threads: 0.4-3mm

-Main motor: 0.55KW

-Net weight: 105kgs/110kgs
