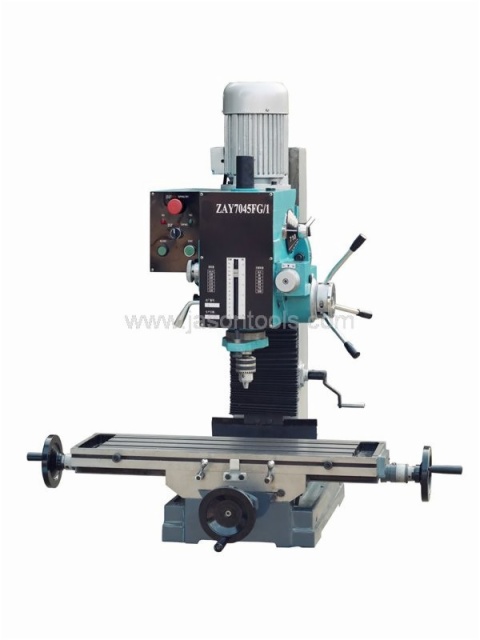

Drilling & Milling Machine 521150

Item Code:521150 Features:Cyclic change of spindle peed Auto-feeding for spindle and cyclic change of feeding speed
  • Description

Main Data:

-Drilling capacity: 45mm

-Max. boring diameter: 70mm

-Face milling capacity: 80mm

-End milling capacity: 32mm

-Max. distance from spindle nose to table: 450mm

-Min. distance from spindle axis to column: 260mm

-Spindle travel: 130mm

-Spindle taper: M.T.4 or R8

-Step of speed: 6

-Range of spindle speed 50Hz : 80-1250 r.p.m.

                                          60Hz : 95-1500 r.p.m.

-Step of automatic feeding of spindle: 6

-Automatic feeding amount of spindle: 0.06-0.30mm/r

-Size of table: 800x240mm; 700x240mm

-Forward and backward travel of table: 175mm

-Left and right travel of table: 500mm; 400mm

-Power: 1.5Kw(2HP)
